Grow GM66 1D 2D USB2.0/Uart Barcode Scanner Module

Place of Origin : China

Certification : CE

MOQ : 1

Packaging Details : Carton

Delivery Time : Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays

Payment Terms : T/T, PayPal

Supply Ability : 5000

Model NO. : GM66

Operating Current : 120mA

Reading Distance : 25 - 250mm

Interface : USB/Uart

Resolution : 0.10mm (4mil)

Transport Package : Standard Export Carton Package

Specification : 62.3*42.5*24.5mm

Trademark : GROW

Origin : China

HS Code : 8473309000

Package Size : 13.00cm * 8.00cm * 9.00cm

Package Gross Weight : 0.250kg

Interface Type : Uart, USB

Scan Element Type : CMOS

Operating Voltage : 5V

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

Payment Method : Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Contact Now

Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Specifications

·Decoding Ability:

1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect.

2D: PDF417,QR Code ,Data Matrix ect.

·Resolution: 0.10mm (4mil)
·Reading Distance :25 - 250mm
·Interfaces: USB2.0 UART
·Operating Voltage :5V
·Operating Current :120mA

·Type of Illuminant: 617nm LED(Aimer), 6500K LEDs(Illumination)

·Scan Angle: Roll:0-360°, Pitch:±65°or greater, Yaw:±60°or greater

·Scanning angle Inclination angle: 34°, Elevation angle 26° Print Contrast 30% minimum reflective difference

·LED Indicator:Buzzer and bi-color light: Red-power, Blue-decoding Successfully

·Operating Temperature:-20 degrees to 55 degrees

·Storage Temperature:-40 degrees to 65 degrees

·Temperature Humidity:5% to 95% Relative humidity, Non-condensing

·Light Levels:0-85000LUX

Files

·Provide User Manual

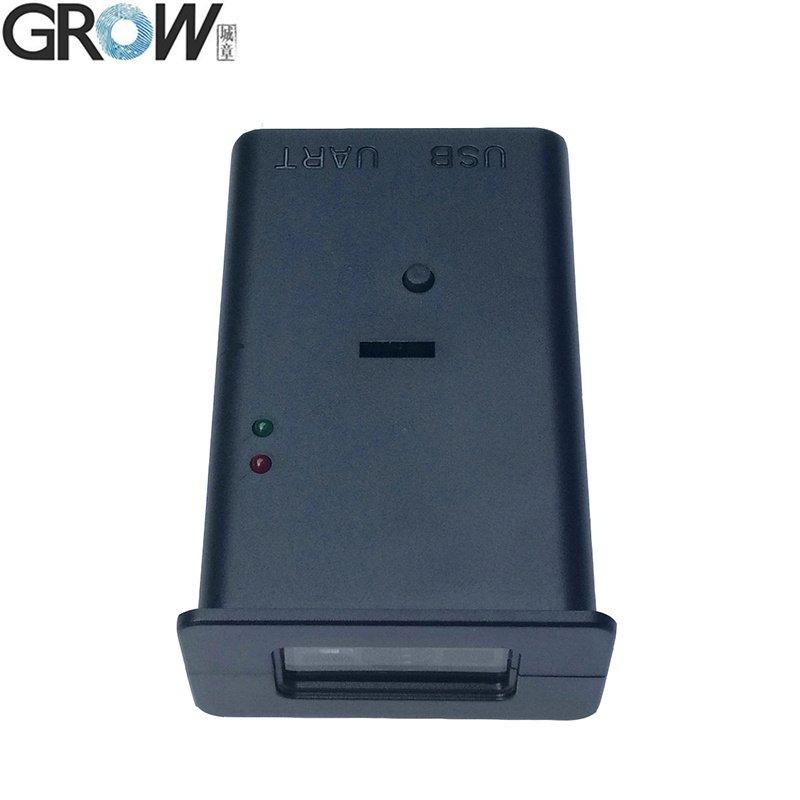

Grow GM66 1D 2D USB2.0/Uart Barcode Scanner Module Images
