Grow GM811 Series DC5V 1d 2D USB Uart Barcode Scanner Module Reader

Product Categories

Hangzhou Grow Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Grow GM811 Series DC5V 1d 2D USB Uart Barcode Scanner Module Reader

Place of Origin : China

Certification : CE

MOQ : 1

Packaging Details : Carton

Delivery Time : Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays

Payment Terms : T/T, PayPal

Supply Ability : 5000

Model NO. : GM811 Series

Operating Current : 70mA

GM811-S Reading Distance : 5-30cm

GM811-L Reading Distance : 7-50cm

Interface : USB/Uart

Resolution : 10mil

Weight : 68g

Transport Package : Standard Export Carton Package

Specification : 50*50 mm

Trademark : GROW

Origin : China

HS Code : 8473309000

Package Size : 13.00cm * 8.00cm * 9.00cm

Package Gross Weight : 0.250kg

Interface Type : Uart, USB

Scan Element Type : CMOS

Operating Voltage : 5V

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

Payment Method : Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Contact Now

Description

GM811 series have GM811-S and GM811-L model.
The only difference between GM811-S and GM811-L is the lens.
GM811-S lens reading distance is 5-30cm.
GM811-L lens reading distance is 7-50cm.
(The actual data depends on the size and content of the code)

GM811 series bar code reader module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen.

GM811 series bar code reader module is an advanced bar code decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development.

Specifications

Parameter	Performance
Sensor	CMOS
Scan Mode	640*480
Lighting	White LED
Power On	Green LED
Indicator Light	Blue LED
Read Code Type	1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS)
Read Code Type	2D: QR Code, Data Matrix, PDF417
GM811-S Reading Distance	5-30cm
GM811-L Reading Distance	7-50cm
Contrast*	>25%
Scan Angle**	Roll: 360° Pitch: 65° Yaw: 65°
Viewing Angle	67° (Horizontal) 53° (Vertical)
Accuracy of reading*	≥10mil

Mechanical/electrical Parameters:

Parameter	Performance
Interface	TTL-232/USB
Size(mm)	50*50 mm
Weight	68 g
Prompting mode	Buzzer LED Indicator
Operating Voltage	5V
Operation Current	≤70mA
Continuous Reading Peak Current	≤120mA
Standby Current	≤6mA(Typical)
Startup time	≤250mS (Typical)

Environmental Parameters:

Parameter	Performance
Operatingtemperature	-20ºC~60ºC
Storage Temperature	-40ºC~+70ºC
Operating Humidity	5%~95%(Non-Condensing)
Environmental Light	Normal indoor light source
Fall	Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)

Files

·Provide User Manual

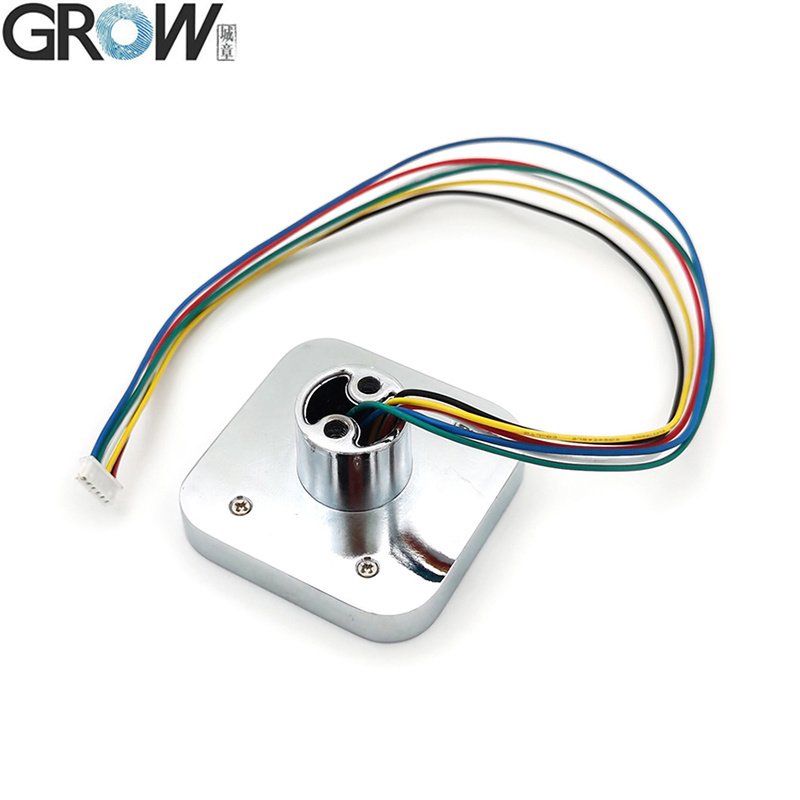

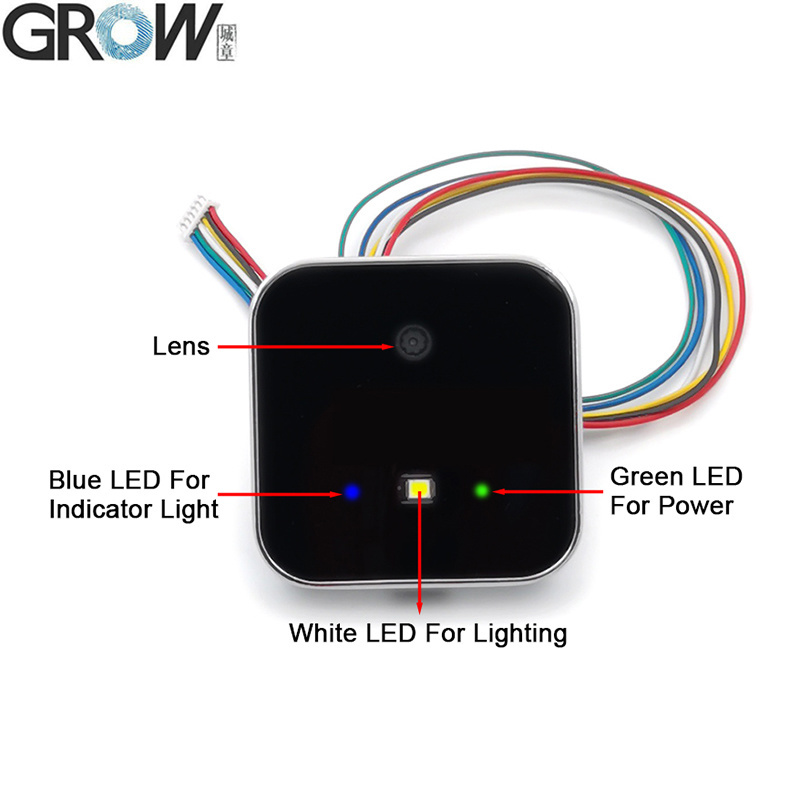

Grow GM811 Series DC5V 1d 2D USB Uart Barcode Scanner Module Reader Images
